1 3 / 4 " CT110 API 5ST Continuous Coiled Tubing for Downhole Operation
CT110 tube belongs to conventional coiled tubing, as one of the main products of our company, CT110 coiled tubing has the advantages of high strength, high pressure resistance, high fatigue life and strong environmental adaptability. Our products are fully compliant with API spec 5ST and all other industry standard. Complete in size and specification, our tubing can meet various operating conditions.
Chemistry Composition
|
Grade
|
max C
|
max Mn
|
max P
|
max S
|
max Si
|
|
CT110
|
0.16
|
1.65
|
0.025
|
0.005
|
0.50
|
The detailed dimension and parameter information are shown in the following table for your reference.
|
OD
|
Thickness
|
U-Weight
|
yield
strength
|
Tension
strength
|
Loading of pipe body
|
Min.
test pressure
|
|
specified
|
Min.
|
Min.
yield force
|
Min.
tension force
|
|
Inch
|
Inch
|
Inch
|
lbs/ft
|
psi
|
psi
|
lbs
|
lbs
|
psi
|
|
3/4
|
0.08~0.118
|
0.075~0.11
|
0.57~0.8
|
110000
|
115000
|
18500~25800
|
19400~26900
|
15000~15000
|
|
1
|
0.075~0.134
|
0.07~0.126
|
0.74~1.24
|
110000
|
115000
|
24000~40100
|
25100~41900
|
13100~15000
|
|
1 1/4
|
0.075~0.175
|
0.07~0.167
|
0.94~2.01
|
110000
|
115000
|
30500~65000
|
31800~68000
|
10500~15000
|
|
1 1/2
|
0.087~0.204
|
0.082~0.196
|
1.31~2.83
|
110000
|
115000
|
42500~91400
|
44400~95500
|
10200~15000
|
|
1 3/4
|
0.095~0.25
|
0.09~0.242
|
1.68~4.01
|
110000
|
115000
|
54300~129600
|
56800~135500
|
9600~15000
|
|
2
|
0.109~0.281
|
0.104~0.266
|
2.2~5.16
|
110000
|
115000
|
71200~166900
|
74500~174500
|
9700~15000
|
|
2 3/8
|
0.109~0.3
|
0.104~0.285
|
2.64~6.65
|
110000
|
115000
|
85400~215100
|
89200~224900
|
8200~15000
|
|
2 5/8
|
0.118~0.3
|
0.11~0.285
|
3.15~7.46
|
110000
|
115000
|
102200~241000
|
106900~252000
|
7800~15000
|
|
2 7/8
|
0.134~0.3
|
0.126~0.285
|
3.93~8.26
|
110000
|
115000
|
126900~267000
|
132700~279100
|
8200~15000
|
|
3 1/4
|
0.145~0.3
|
0.137~0.285
|
4.81~9.46
|
110000
|
115000
|
155600~305800
|
162700~319700
|
7900~15000
|
|
3 1/2
|
0.156~0.3
|
0.148~0.285
|
5.58~10.26
|
110000
|
115000
|
180300~331800
|
188500~346800
|
7900~15000
|
The main information are as follows:
Coiled tubing type: Conventional
Steel grade: CT110
Advantages: High strength, Anti-fatigue
Standard: API 5ST
Outside Diameter: 3/4 " ~ 3 1/2 " (19.1 mm to 88.9 mm)
Wall Thickness: 0.075 " ~ 0.3 " (1.9mm~7.6mm)
Mechanical Properties
Min. Tensile Strength: 115,000psi ( 793Mpa)
Min. Yield Strength: 110,000psi ( 758Mpa)
Max. Hardness: 30HRC
Product Tags:
|
|

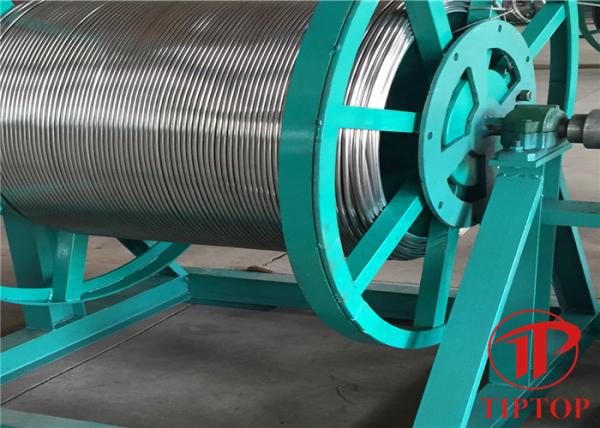

CT110 Continuous Coiled Tubing Images
|
