Downhole ESP Cable Pump Oil Well Coiled Tubing

Downhole Oil Well ESP Cable Coiled tubing & ESP cable ESP Pump

Coiled tubing & ESP cable

3*2AWG Copper conductor ,EPDM Insulation,825 Alloy Capillary Tube,OD 1/4’’ and 3/8’’,Inner sheath,316L Stainless steel strip armor.

3*2AWG Copper conductor,OD 3/8 316L Capillary tube,1.5’’Coiled tubing,EPDM outer sheath(2-7/8’’).

OD 1/4 316L Capillary tube with cable, OD 3/4 316L Capillary tube, 1.75’’Coiled tubing

2* OD 3/4 316L Capillary tube,7 cores cable within OD 3/4 316L capillary tube,316L Stainless steel strip armor,2’’Coiled tubing

95²Copper conductor,Rubber Insulation,316L Stainless steel strip armor, 2205 Duplex OD 1.25’’ Coiled tubing.

5 cores signal cable within OD 1/4 316L capillary tube,3*2AWG Copper conductor,Rubber filler,1.5’’Coiled tubing

4 cores signal cable,6*OD 1/4 316L capillary tube,Nylon filler, 1’’Coiled tubing.

2*1.5’’Coiled tubing,XLPE outer sheath.

ESP Cable Coiled tubing

ESP Cable SS Coil

QYPN ESP Cable SS Coil

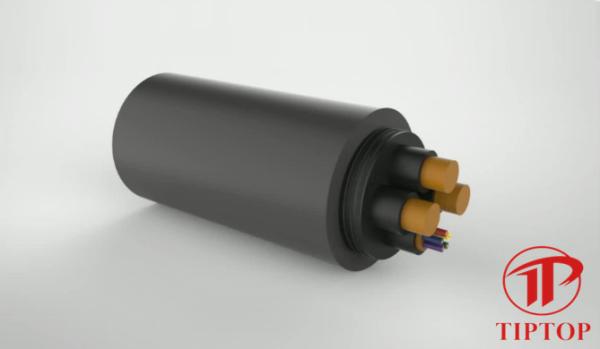

Downhole ESP Cable Pump Oil Well Coiled Tubing Images
