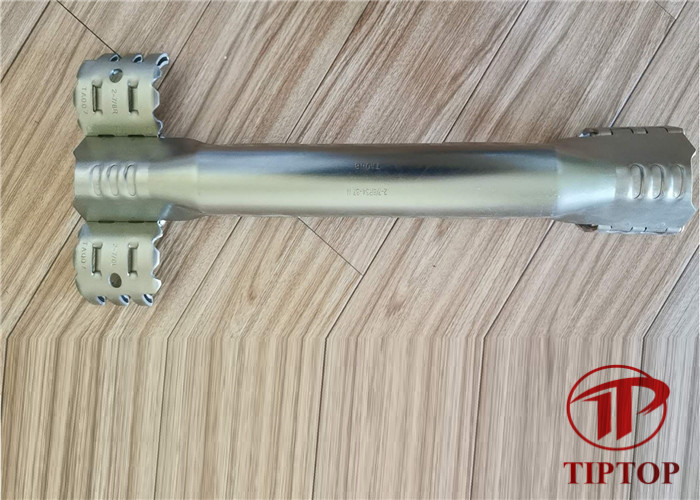

4-1/2" ESP Cable Protectors 11-16mm SQUARE
Cross coupling cable protector is designed to control line secured to the pipe to prevent slack during installation. TIPTOP offers a variety of control circuit protection options according to customer requirements and applications. Custom 900 and developed various types of cross-coupled cable protector, applicable to all types of pipe (coupling), the cable type and size.
Features:
• Banding Straps-Banding straps are used for securing a bare control line to the tubing for small tubing sizes in shallow set applications.
• Offset Clamps-Two Piece Design-the offset clamps are designed to protect control lines bypassing the SCSSV in deep set and horizontal applications. The rugged stamped design is available for securing single control lines or multiples encapsulated buddles. These protectors are assembled using a wedge pin which ensures reliable clamping during the life of the well.
• Offset Clamps-One-Piece Design-these offset clamps are also designed to protect the control lines bypassing the SCSSV in deep set and horizontal applications. The forged design accommodates a wide range of bypass possibilities while providing reliable protection for the life of the well.
Specifications:
| NO. | Description | Tube size | Cable type | Cable size |
| 1 | Cable Protector 2-3/8R6-8 | 2-3/8" | Round | Φ6-8mm |
| 2 | Cable Protector 2-3/8F11/34 | 2-3/8" | Flat | 11mm SQUARE |
| 3 | Cable Protector 2-3/8R32-34 | 2-3/8" | Round | Φ32-34mm |
| 4 | Cable Protector 2-7/8R6-8 | 2-7/8" | Round | Φ6-8mm |
| 5 | Cable Protector 2-7/8R30-33 | 2-7/8" | Round | Φ30-33mm |
| 6 | Cable Protector 2-7/8R34-37 | 2-7/8" | Round | Φ34-37mm |
| 7 | Cable Protector 2-7/8F11/34 | 2-7/8" | Flat | 11mm SQUARE |
| 8 | Cable Protector 2-7/8F16-19/56 | 2-7/8" | Flat | 16-19mm SQUARE |
| 9 | Cable Protector 2-7/8F16-19/70 | 2-7/8" | Flat | 16-19mm SQUARE |
| 10 | Cable Protector 3-1/2R6-8 | 3-1/2" | Round | Φ6-8mm |
| 11 | Cable Protector 3-1/2R30-33 | 3-1/2" | Round | Φ30-33mm |
| 12 | Cable Protector 3-1/2R34-37 | 3-1/2" | Round | Φ34-37mm |
| 13 | Cable Protector 3-1/2R38-42 | 3-1/2" | Round | Φ38-42mm |
| 14 | Cable Protector 3-1/2F11/34 | 3-1/2" | Flat | 11mm SQUARE |
| 15 | Cable Protector 3-1/2F16-19/60 | 3-1/2" | Flat | 16-19mm SQUARE |
| 16 | Cable Protector 3-1/2F19-23/70 | 3-1/2" | Flat | 19--23mm SQUARE |
| 17 | Cable Protector 4-1/2R6-8 | 4-1/2" | Round | Φ6-8mm |
| 18 | Cable Protector 4-1/2R34-37 | 4-1/2" | Round | Φ34-37mm |
| 19 | Cable Protector 4-1/2R38-42 | 4-1/2" | Round | Φ38-42mm |
| 20 | Cable Protector 4-1/2F11/34 | 4-1/2" | Flat | 11mm SQUARE |
| 21 | Cable Protector 4-1/2F16-19/60 | 4-1/2" | Flat | 16-19mm SQUARE |
| 22 | Cable Protector 4-1/2F19-23/60 | 4-1/2" | Flat | 19--23mm SQUARE |
| 23 | Cable Protector 5-1/2R6-8 | 5-1/2" | Round | Φ6-8mm |
| 24 | Cable Protector 5-1/2R34-37 | 5-1/2" | Round | Φ34-37mm |
| 25 | Cable Protector 5-1/2R38-42 | 5-1/2" | Round | Φ38-42mm |
| 26 | Cable Protector 5-1/2F11/34 | 5-1/2" | Flat | 11mm SQUARE |
| 27 | Cable Protector 5-1/2F11-16/56 | 5-1/2" | Flat | 11-16mm SQUARE |
| 28 | Cable Protector 5-1/2F16-19/70DUAL | 5-1/2" | Flat | 19--23mm SQUARE |
| 29 | Cable Protector 7R6-8 | 7" | Round | Φ6-8mm |
| 30 | Cable Protector 7F11/34 | 7" | Flat | 11mm SQUARE |
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A: Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
