Round & Flat Cross Coupling Cable Protector Φ38-42mm

Name: Round amp Flat Cross Coupling Cable Protector Φ3842mm
Brand: Tiptop
Price: 1 USD

China Round & Flat Cross Coupling Cable Protector Φ38-42mm wholesale

Brand Name : Tiptop

Model Number : 2-3/8"

Certification : ISO9001

Place of Origin : China

MOQ : 10 pcs

Price : USD/EURO/RMB

Payment Terms : L/C, T/T

Supply Ability : 1000 tons per month

Delivery Time : one week

Packaging Details : wooden cases

Product Name : Round&Flat ESP Cable Protectors Φ38-42mm

Material : Carbon steel or stainless stee

Tube Size : 2-3/8"~7"

Clamp type : casted or punching

Cable type : Round&Flat

Cable size : Φ38-42mm

Contact Now

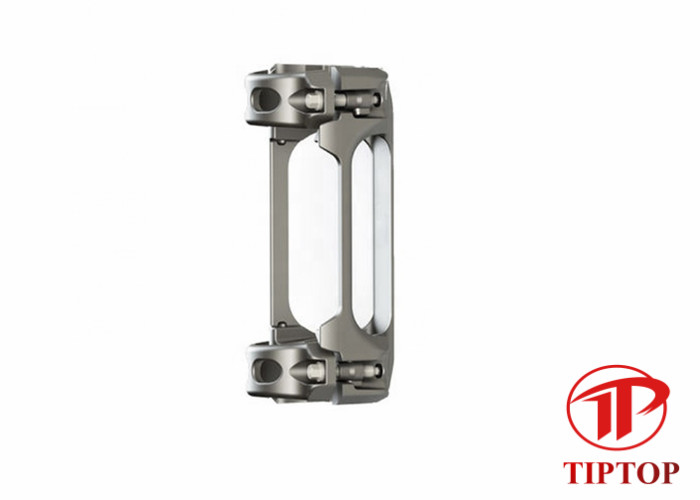

Round&Flat ESP Cable Protectors Φ38-42mm

The main role of cross-coupling cable protector is fixed on the outer wall of the tubing and the protection of underground cables, in particular, to prevent the cable section collar location by eccentric wear, specifications can be customized according to the production tubing sizes, materials can be made of different materials according to media.

Features:

All-cast construction; ensures strength and reliability
One piece design without separate parts or pins
Smooth streamline design; reduces collision hanging risk
Optimized cable slot; considerate layout
Quick and reliable installation; less than 30 seconds

Specifications:

NO.	Description	Tube size	Cable type	Cable size
1	Cable Protector 2-3/8R6-8	2-3/8"	Round	Φ6-8mm
2	Cable Protector 2-3/8F11/34	2-3/8"	Flat	11mm SQUARE
3	Cable Protector 2-3/8R32-34	2-3/8"	Round	Φ32-34mm
4	Cable Protector 2-7/8R6-8	2-7/8"	Round	Φ6-8mm
5	Cable Protector 2-7/8R30-33	2-7/8"	Round	Φ30-33mm
6	Cable Protector 2-7/8R34-37	2-7/8"	Round	Φ34-37mm
7	Cable Protector 2-7/8F11/34	2-7/8"	Flat	11mm SQUARE
8	Cable Protector 2-7/8F16-19/56	2-7/8"	Flat	16-19mm SQUARE
9	Cable Protector 2-7/8F16-19/70	2-7/8"	Flat	16-19mm SQUARE
10	Cable Protector 3-1/2R6-8	3-1/2"	Round	Φ6-8mm
11	Cable Protector 3-1/2R30-33	3-1/2"	Round	Φ30-33mm
12	Cable Protector 3-1/2R34-37	3-1/2"	Round	Φ34-37mm
13	Cable Protector 3-1/2R38-42	3-1/2"	Round	Φ38-42mm
14	Cable Protector 3-1/2F11/34	3-1/2"	Flat	11mm SQUARE
15	Cable Protector 3-1/2F16-19/60	3-1/2"	Flat	16-19mm SQUARE
16	Cable Protector 3-1/2F19-23/70	3-1/2"	Flat	19--23mm SQUARE
17	Cable Protector 4-1/2R6-8	4-1/2"	Round	Φ6-8mm
18	Cable Protector 4-1/2R34-37	4-1/2"	Round	Φ34-37mm
19	Cable Protector 4-1/2R38-42	4-1/2"	Round	Φ38-42mm
20	Cable Protector 4-1/2F11/34	4-1/2"	Flat	11mm SQUARE
21	Cable Protector 4-1/2F16-19/60	4-1/2"	Flat	16-19mm SQUARE
22	Cable Protector 4-1/2F19-23/60	4-1/2"	Flat	19--23mm SQUARE
23	Cable Protector 5-1/2R6-8	5-1/2"	Round	Φ6-8mm
24	Cable Protector 5-1/2R34-37	5-1/2"	Round	Φ34-37mm
25	Cable Protector 5-1/2R38-42	5-1/2"	Round	Φ38-42mm
26	Cable Protector 5-1/2F11/34	5-1/2"	Flat	11mm SQUARE
27	Cable Protector 5-1/2F11-16/56	5-1/2"	Flat	11-16mm SQUARE
28	Cable Protector 5-1/2F16-19/70DUAL	5-1/2"	Flat	19--23mm SQUARE
29	Cable Protector 7R6-8	7"	Round	Φ6-8mm
30	Cable Protector 7F11/34	7"	Flat	11mm SQUARE

Round & Flat Cross Coupling Cable Protector Φ38-42mm

FAQ

Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.

Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.

Q4. How to ensure the quality?
A: Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
