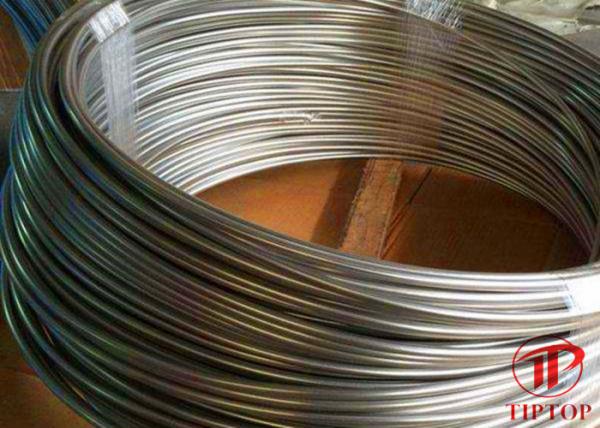

Bending UNS S30403 SS304L Hydraulic Control Line Tubing

Xi'an Tiptop Machinery Co.,Ltd
Contact Now

Bending UNS S30403 SS304L Hydraulic Control Line Tubing

  • 1
  • 2

Brand Name : TIPTOP

Model Number : 316L

Certification : ISO 9001

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000 tons per month

Delivery Time : 10 days

Packaging Details : Seaworthy wooden cases or wooden reels

Material : 316L

Standard : ASTM A269

Length : According to the sizes

Processing : Bending, Welding, Cutting

OD : 1/16"~1"

Thickness : 0.02"~0.083"

Contact Now

UNS S30403 TP 304L SS Hydraulic Control Line tubing

We specializes in the production and supply of coiled tubing, capillary tubes, corrosive resistant alloycoiled tubing, hydraulic control tubing, hydraulic control lines, tubing encapsulated cables, chemical injection lines, pre insulated tubes, multi core tube bundles, umbilical cable, and cable-alloy pipes. The products are widely used in petroleum, chemical, natural gas, shipbuilding, environmental protection and other industries, especially from standard well-workover and velocity/production strings for logging, drilling and special application strings with factory-installed wire-line, capillary tubes to integral tools. Our continuous coiled tubing in lengths suitable for the most challenging downhole environments.

The standard grades are 316L, alloy 825 and alloy 625. Other grades of stainless steel in duplex and superduplex and nickel alloy are available on request. Tubing can be supplied in the annealed or cold worked condition.

• Welded and drawn tubing.
• Diameter from 3mm (0.118'') to 25.4mm (1.00'') OD.
• Wall thickness from 0.5mm (0.020'') to 3mm (0.118'').
• Typical sizes: 1/4'' x 0.035'', 1/4'' x 0.049'', 1/4'' x 0.065'', 3/8'' x 0.035'', 3/8'' x 0.049'', 3/8'' x 0.065''.
• OD tolerance +/- 0.005'' (0.13mm) and +/- 10% wall thickness. Other tolerances are available on request.
• Coil lengths up to 13,500m (45,000ft) without orbital joints depending on product dimensions.
• Encapsulated, PVC coated or bare line tubing.
• Available on wooden or steel spools.

Materials

• Austenitic steel 304L (UNS S30403)

• Austenitic steel 316L (UNS S31603)
• Duplex 2205 (UNS S32205 & S31803)
• Super Duplex 2507 (UNS S32750)
• Incoloy 825 (UNS N08825)
• Inconel 625 (UNS N06625)

OD(mm)

Thinkness (mm)
3.0-4.0 4.01-6.00 6.01-8.00 8.01-10.0 10.01-12.7 12.71-19.05 19.05-25.4
0.30-0.40
0.41-0.50
0.51-0.60
0.61-0.70
0.71-1.00
1.01-1.20
1.21-1.50
1.51-2.0

Chemical Composition,%
Standard ASTM A269 ASTM A789 ASTM B704
Material SS 304 SS 304L SS 316 SS 316L Duplex 2205 Super Duplex 2507 Incoloy 625 Incoloy 825
UNS S30400 S30403 S31600 S31603 S32205 S32750 N06625 N08825
C 0.08 0.035 0.08 0.035 0.03 0.03 0.1 0.05
Mn 2 2 2 2 2 1.2 0.5 1
P 0.045 0.045 0.045 0.045 0.03 0.035 0.015 ...
S 0.03 0.03 0.03 0.03 0.02 0.02 0.015 0.03
Si 1 1 1 1 1 0.8 0.5 0.5
Ni 8.0-11.0 8.0-12.0 10.0-14.0 10.0-15.0 4.5-6.5 6.0-8.0 min 58.0 38.0-46.0
Cr 18.0-20.0 18.0-20.0 16.0-18.0 16.0-18.0 22.0-23.0 24.0-26.0 20.0-23.0 19.5-23.5
Mo ... ... 2.00-3.00 2.00-3.00 3.0-3.5 3.0-3.5 8.0-10.0 2.5-3.5
N ... ... ... ... 0.14-0.20 0.24-0.32 ... ...
Cu ... ... ... ... ... 0.5 ... 1.5-3.0
Fe 5 min 22.0
Al 0.4 0.2
Ti 0.4 0.6-1.2
Cb+Ta 3.15-4.15 ...

Bending UNS S30403 SS304L Hydraulic Control Line Tubing
