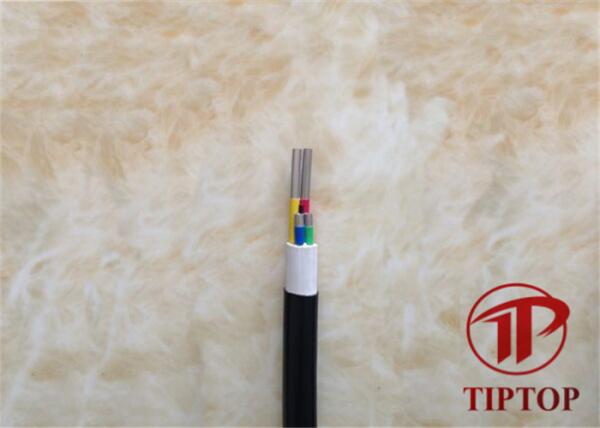

316L Stainless Steel 4 Core Coiled Tubing

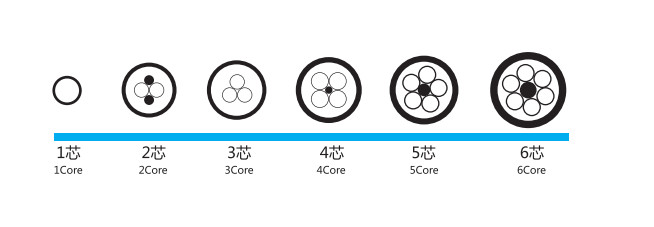

The multi-core tube consists of one to nine stainless steel tubes laid up spirally inside an extruded outer PVC sheath. They are widely used for pneumatic and hydraulic remote control, measuring and monitoring systems. Materials are ASTM TP316/ 316L, TP304/304L. Each individual tube is PVC sheathed in a different color for easy identification and protection purposes . The extruded outer sheath is made of oil and seawater resistant, weatherproof, flame retardant, corrosion and acid resistant PVC. The multi-core tube is continuously marked at every one meter throughout the entire length for easy installation. Heat shrinkable products provide complete water sealing, abrasion and corrosion protection under all conditions.
The products are made of high quality stainless steel raw materials and jackets and fillers produced in accordance with ROHS environmental protection directives.lt has the characteristics of pressure resistance, wear resistance, corrosion resistance, anti-aging, flame retardant and environmental protection. It is suitable for a variety of harsh climatic conditions and has a high ety factor.
Product Characteristics
- Customized to avoid waste
-
- Positioned as high quality products to ensure absolutely e
-
- Easy to lay, labor saving
-
- Superior performance, free of maintenance
-
- High-tech technology and extensive application
Specification:
| Material of Tube | Tube OD | Wall Thickness | Cores | Standard Length of Tube |
| ASTM TP 304/304L/316/316L | 6/8/10/12/14/15mm | 0.8/1.0/1.2/1.5/2.0mm | 1~6core | Seamless | Welded |
| 50~160 | 200~800 |
Technical parameters:
| O.D (mm) | No.of Cores | Sheath Thickness (mm) | Overall Diameter (Approx, mm) | Bending Radius (Minimum mm) | Weight/kg/m |
| 0.18 | 1.0 | 1.2 | 1.5 | 2.0 |
| 6 | 1 | 1 | 8 | 64 | 0.18 | 0.21 | - | - | |
| 2 | 2 | 19 | 152 | 0.67 | 0.71 | - | - | |
| 4 | 2 | 23 | 184 | 0.96 | 1.04 | - | - | |
| 6 | 2 | 28 | 224 | 1.25 | 1.38 | - | - | |
| 8 | 1 | 1 | 10 | 80 | 0.25 | 0.28 | 0.31 | - | |
| 2 | 2 | 23 | 192 | 0.83 | 0.89 | 0.95 | - | |
| 4 | 2 | 28 | 224 | 1.2 | 1.33 | 1.45 | - | |
| 6 | 2 | 33 | 272 | 1.82 | 2 | 2.17 | - | |
| 10 | 1 | 1 | 12 | 96 | 0.3 | 0.34 | 0.38 | 0.43 | |
| 2 | 2 | 28 | 224 | 1.1 | 1.18 | 1.26 | 1.37 | |
| 4 | 2 | 34 | 272 | 1.8 | 1.97 | 2.13 | 2.35 | |
| 6 | 2 | 39 | 320 | 2.15 | 2.4 | 2.63 | 2.96 | |
| 12 | 1 | 1 | 14 | 112 | - | 0.41 | 0.45 | 0.53 | |
| 2 | 2 | 34 | 272 | - | 1.38 | 1.48 | 1.62 | |
| 4 | 2 | 39 | 312 | - | 2.37 | 2.57 | 2.85 | |
| 6 | 2 | 48 | 384 | - | 3 | 3.29 | 3.71 | |
| 14 | 1 | 1 | 16 | 128 | - | - | - | 0.61 | 0.74 |
| 2 | 2 | 39 | 312 | - | - | - | 3 | 3.26 |
| 15 | 1 | 1 | 17 | 136 | - | - | - | 0.64 | 0.79 |
| 2 | 2 | 39 | 312 | - | - | - | 3.08 | 3.36 |
Product Standard:
ASTM A269/A269M Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
ASTM A312/A312M Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
Where the multi-core coiled tubing used ?
-
Control tubing in oil and gas well
-
Instrument tubing
-
Chemicl injection tubing line
-
Pre-insulated tubing
-
Electric heating or steam heating tubing line
-
Hater tubing line
Product Tags:
|
|
PVC Cover Cold Drawn Seamless SS316L 4 Core Coiled Tubing Images
|
